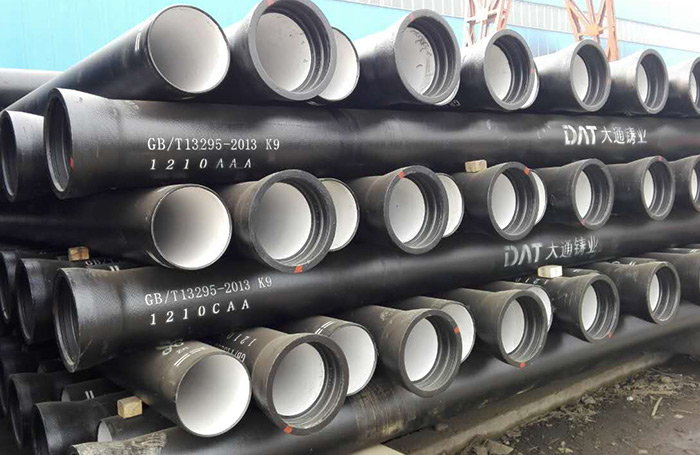

Company Products:

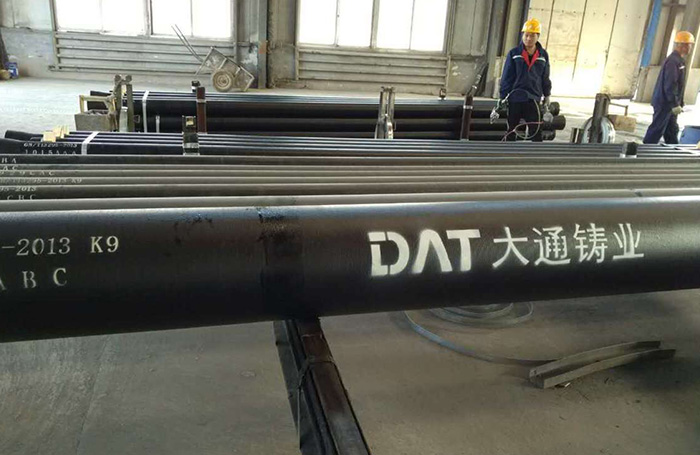

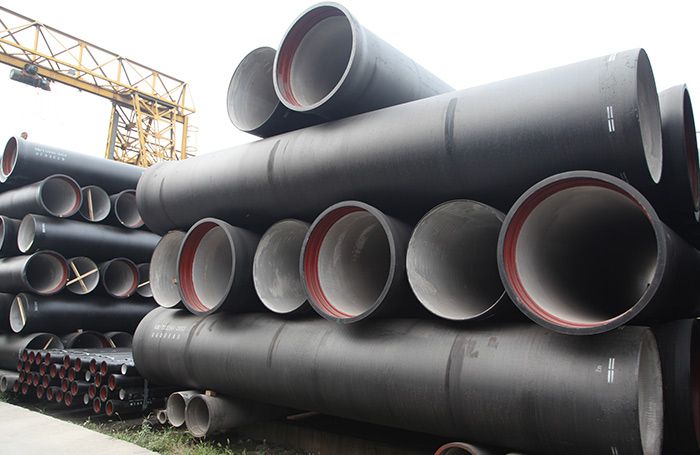

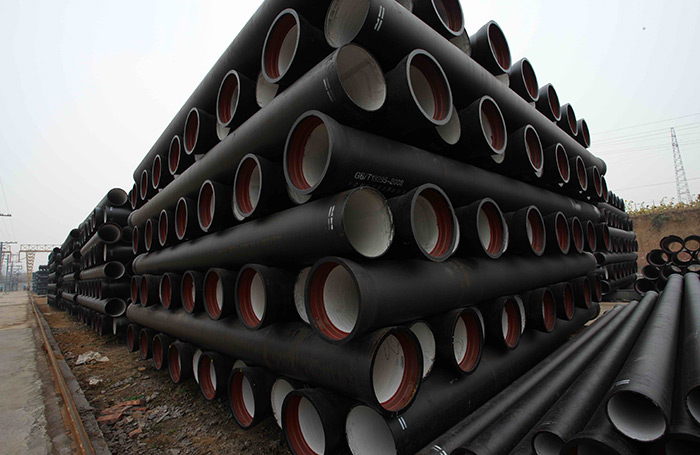

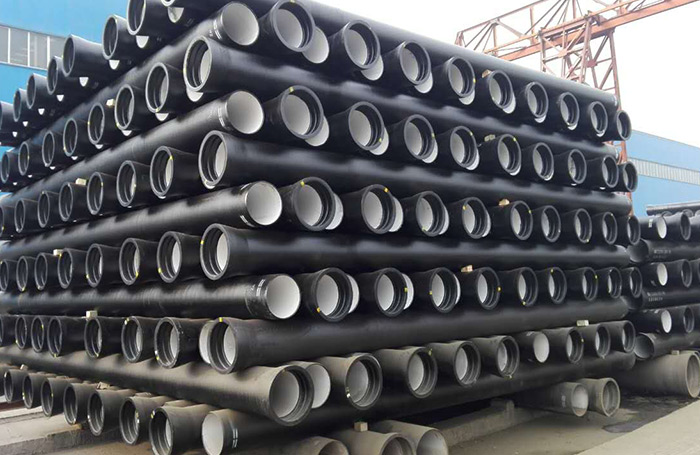

Ductile Iron Pipe, Ductile Iron Fittings, Rubber gasket.
Uses are divided into:
1.Standard:ISO 2531 & BS EN545 (for potable water application) BS EN598 (for sewage application)
2.Effective Length:6m/5.7m
3.Internal Lining :Ordinary Portland Cement ,Sulphate resistant cement ,High-aluminal Cement.
4.External coating:Zinc Primer Plus Bitumen or Expoxy Paiting The coating can be accordance with customers requirements.

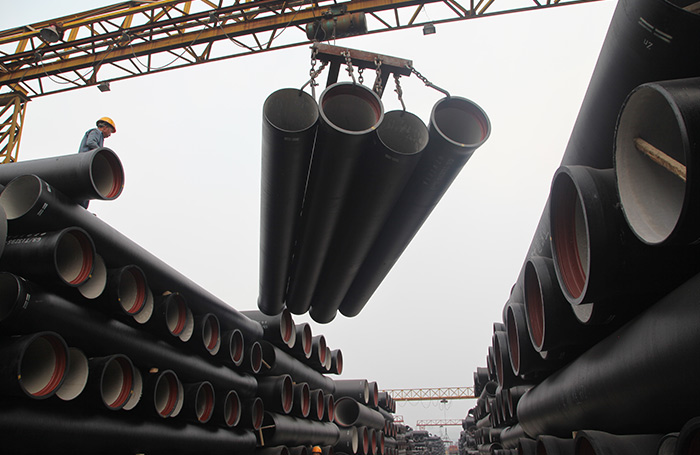

5. Shipment: By bulk ship or 20/40 containr
6. Rubber gasket: NBR, SBR, EPDM according to ISO4633/EN681.1
7.Technical parament.
| Specification | Wall Thickness（mm） | K9 Weight Ton/pc | C Class Weight Ton/pc | C class | CBM/PC （M3/PC） | |
| C CLASS | K9 | |||||
| DN80 | 4.4 | 6 | 0.077 | 0.058 | C40 | 0.114 |
| DN100 | 4.4 | 6 | 0.095 | 0.071 | 0.136 | |
| DN150 | 4.5 | 6 | 0.144 | 0.106 | 0.255 | |
| DN200 | 4.7 | 6.3 | 0.194 | 0.146 | 0.424 | |
| DN250 | 5.5 | 6.8 | 0.255 | 0.21 | 0.631 | |
| DN300 | 6.2 | 7.2 | 0.323 | 0.282 | 0.877 | |
| DN350 | 6.3b | 7.7 | 0.403 | 0.335 | C30 | 1.07 |
| DN400 | 6.5b | 8.1 | 0.482 | 0.394 | 1.35 | |
| DN450 | 6.9 | 8.6 | 0.577 | 0.472 | 1.651 | |
| DN500 | 7.5 | 9 | 0.669 | 0.565 | 2 | |
| DN600 | 8.7 | 9.9 | 0.882 | 0.783 | 2.8 | |
| DN700 | 8.8b | 10.8 | 1.123 | 0.931 | C25 | 3.78 |
| DN800 | 9.6 | 11.7 | 1.394 | 1.164 | 4.98 | |
| DN900 | 10.6 | 12.6 | 1.691 | 1.446 | 6.174 | |
| DN1000 | 11.6 | 13.5 | 2.017 | 1.759 | 7.544 | |
| DN1200 | 13.6 | 15.3 | 2.758 | 2.122 | 10.787 | |
8.Delivery Detail: 20 days after order.
